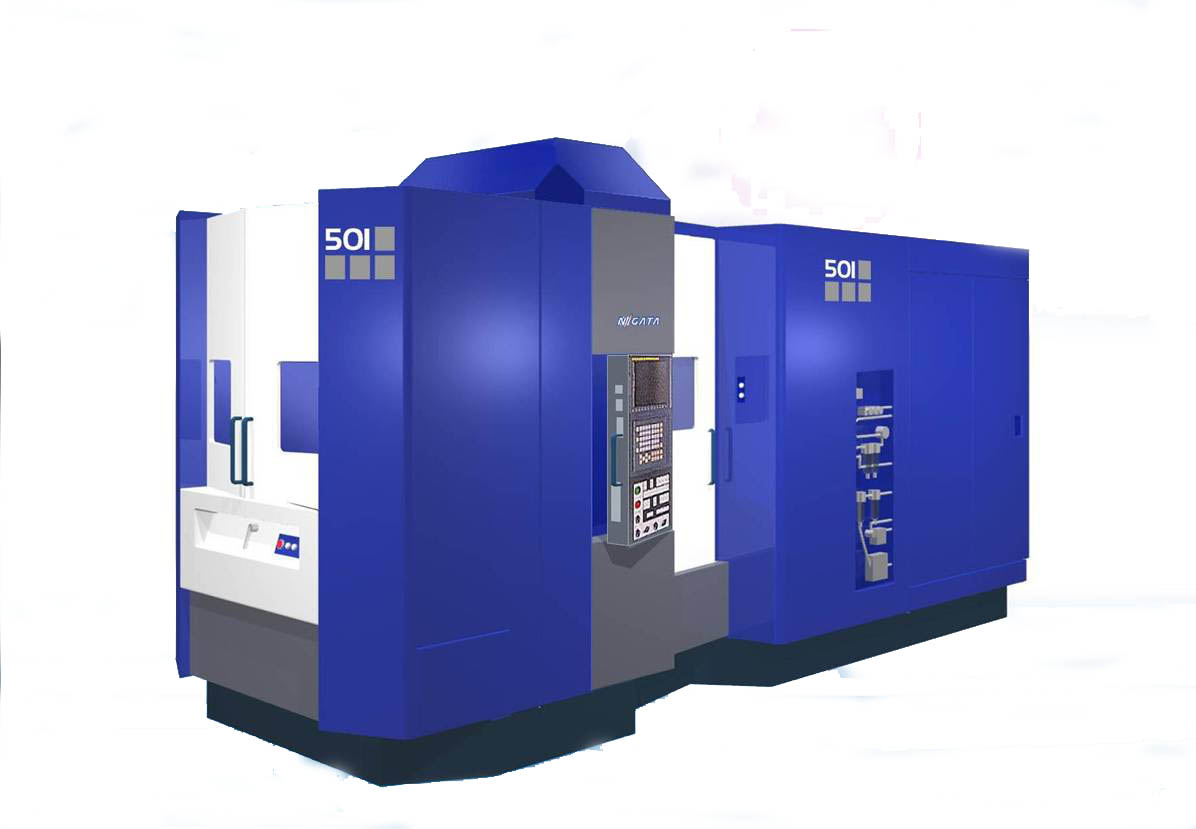

SPN501




Travel X/YZ mm 800/750/75
Pallet size mm 500*500
Table increments 1(0.001))
Work capacity(Dia X Height)) mm Ø800X1,000
Spindle taper size #50
Standard/Spindle/Speed min -1 50~12,000
/drive motor kw 30/26
/max torque N-m 350
(Optional) min -1 15,000/8,000
Rapid Traverse X,Y,Z m/min 60
Cutting Feed X,Y,Z mm/min 1-40,000
Automatic Tool Changer(ATC) 60(118,178,238)
Number of Pallets 2
Automatic Pallet Changer(2APC) 2
Control Fanuc




SPN701




Travel X/YZ mm 1,500/1,300/1,150
Pallet size mm 800*800
Table increments 1(0.001))
Work capacity mm Ø1500XW1,000XH1,400
Spindle taper size #50
Standard/Spindle/Speed min -1 50~12,000
/drive motor
kw 30/26
(Optional)
 min -1 15,000/8,000
Rapid Traverse X,Y,Z m/min 50
Cutting Feed X,Y,Z mm/min 1-40,000
Automatic Tool Changer(ATC) 60(118,178,238)
Number of Pallets 2
Automatic Pallet Changer(2APC) Rotary shuttle type
Control Fanuc

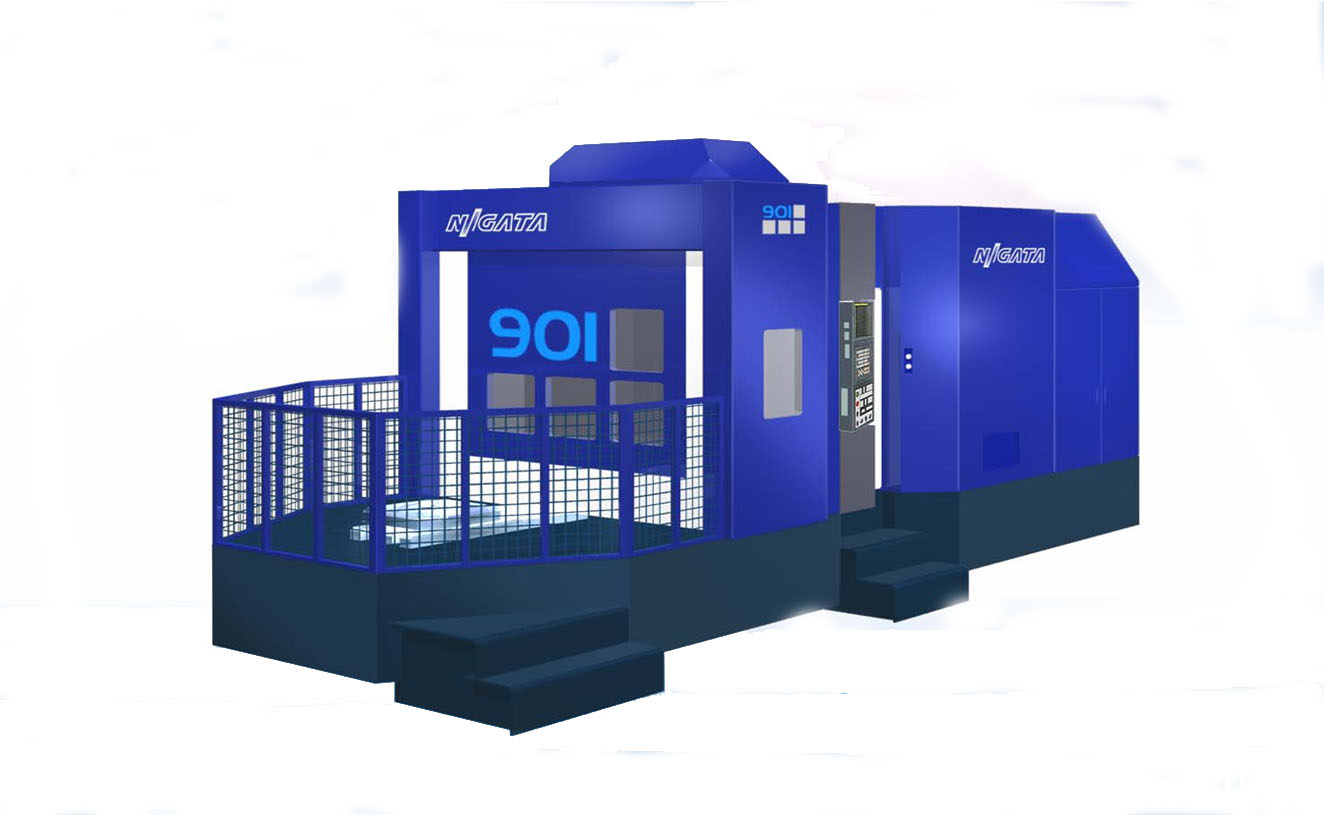

SPN901




Travel X/YZ mm 1,500/1,300/1,150
Pallet size mm 800*800
Table increments 1(0.001))
Work capacity mm Ø1500XW1,000XH1,400
Spindle taper size #50
Standard/Spindle/Speed min -1 50~12,000
/drive motor
kw 30/26
(Optional)
 min -1 15,000/8,000
Rapid Traverse X,Y,Z m/min 50
Cutting Feed X,Y,Z mm/min 1-40,000
Automatic Tool Changer(ATC) 60(118,178,238)
Number of Pallets 2
Automatic Pallet Changer(2APC) Rotary shuttle type
Control Fanuc
